Alumina ballistic ceramic, also known as aluminum oxide (Al₂O₃), is a cornerstone material in modern armor systems, prized for its exceptional durability and effectiveness in protecting against a wide range of ballistic threats. Widely used in military and law enforcement applications, including body armor plates, vehicle armor, and aircraft protection, alumina ceramic offers a compelling combination of hardness, lightweight properties, and cost-effectiveness. However, despite its impressive performance, alumina ceramic has a notable vulnerability to tungsten core projectiles, which poses challenges in certain high-threat scenarios. As an alternative, silicon carbide (SiC) ceramic emerges as a superior option for resisting such advanced threats. This article explores the durability of alumina ballistic ceramic, its susceptibility to tungsten core projectiles, and why silicon carbide is a viable alternative.
The Durability of Alumina Ballistic Ceramic
Alumina ceramic is renowned for its outstanding mechanical properties, making it a go-to material for ballistic protection. With a Mohs hardness rating of approximately 9, alumina is one of the hardest materials used in armor, surpassed only by a few substances like diamond and boron carbide. This extreme hardness enables alumina to effectively shatter or deform incoming projectiles, such as standard small arms ammunition (e.g., 5.56mm or 7.62mm rounds), dissipating their kinetic energy and preventing penetration. The durability of alumina ceramic stems from several key attributes:
  • High Compressive Strength: Alumina can withstand immense compressive forces, allowing it to absorb and distribute the impact energy of a projectile across a wider area, often in conjunction with a backing material like Kevlar or ultra-high-molecular-weight polyethylene (UHMWPE).
  • Lightweight Design: Compared to traditional steel armor, alumina ceramic is significantly lighter, with densities ranging from 3.5 to 3.9 g/cm³. This makes it ideal for applications where mobility is critical, such as personal body armor or lightweight vehicle protection.
  • Cost-Effectiveness: Alumina is relatively affordable compared to other advanced ceramics like boron carbide, making it a practical choice for large-scale production and deployment.
  • Thermal Stability: Alumina maintains its structural integrity under high temperatures, which is crucial in scenarios involving incendiary rounds or high-velocity impacts that generate significant heat.
These properties make alumina ceramic a reliable choice for defeating common ballistic threats, including lead-core and mild steel-core ammunition. It is commonly rated for NIJ Level III and IV protection when paired with appropriate backing, capable of stopping multiple hits from rifle rounds like 7.62x51mm NATO or armor-piercing .30-06 M2 AP.
Susceptibility to Tungsten Core Projectiles
Despite its robust performance, alumina ceramic has a critical limitation when facing tungsten core projectiles, such as tungsten carbide or tungsten alloy armor-piercing (AP) rounds.
Tungsten, with a density of around 19.25 g/cm³ and exceptional hardness, is used in advanced anti-material and anti-armor ammunition due to its ability to maintain structural integrity and penetrate hard targets. These projectiles pose a significant challenge to alumina ceramic for several reasons:
  • High Density and Kinetic Energy: Tungsten core projectiles concentrate immense kinetic energy into a small area due to their high density and velocity. This overwhelms the compressive strength of alumina, often causing localized cracking or failure which translates to the backing material.
  • Penetration Efficiency: Tungsten’s hardness and toughness allow it to resist deformation upon impact, unlike softer lead or steel cores that alumina can easily shatter. This enables tungsten projectiles to exploit micro-fractures in the ceramic, and a more unresisted run at the backing material,  leading to penetration.
  • Multi-Hit Vulnerability: A tungsten core projectile can create extensive cracking, further reducing the ceramic’s ability to withstand subsequent hits in the same area.
In practical terms, while alumina ceramic can stop some tungsten-based rounds under ideal conditions (e.g., lower-velocity impacts or glancing blows), it struggles against high-velocity, small-diameter tungsten penetrators, such as those found in advanced military-grade ammunition like 7.62x51mm AP or 30mm autocannon rounds. This vulnerability limits alumina’s effectiveness in scenarios involving modern anti-armor threats, particularly in military engagements where adversaries deploy tungsten-based munitions.
Silicon Carbide Ceramic: A Superior Alternative
To address the limitations of alumina against tungsten core projectiles, silicon carbide (SiC) ceramic emerges as a highly effective alternative. Silicon carbide offers several advantages that make it better suited for resisting advanced threats:
  • Superior Hardness: Silicon carbide has a Mohs hardness of 9.5, surpassing alumina. This increased hardness allows SiC to better resist the penetration of tungsten core projectiles by causing greater deformation or fragmentation of the penetrator.
  • Lower Density: With a density of approximately 3.1–3.2 g/cm³, silicon carbide is lighter than alumina, enabling the design of armor systems that reduce weight without sacrificing protection. This is particularly valuable for body armor, where user mobility is paramount.
  • Enhanced Multi-Hit Capability: Where mosaic tile array ballistic systems are deployed, SiC vastly improves and armor's ability to withstand multiple hits from tungsten-based rounds.
  • Higher Performance Against AP Threats: Silicon carbide’s combination of hardness and toughness makes it more effective at disrupting the structural integrity of tungsten core projectiles, reducing their penetration potential.

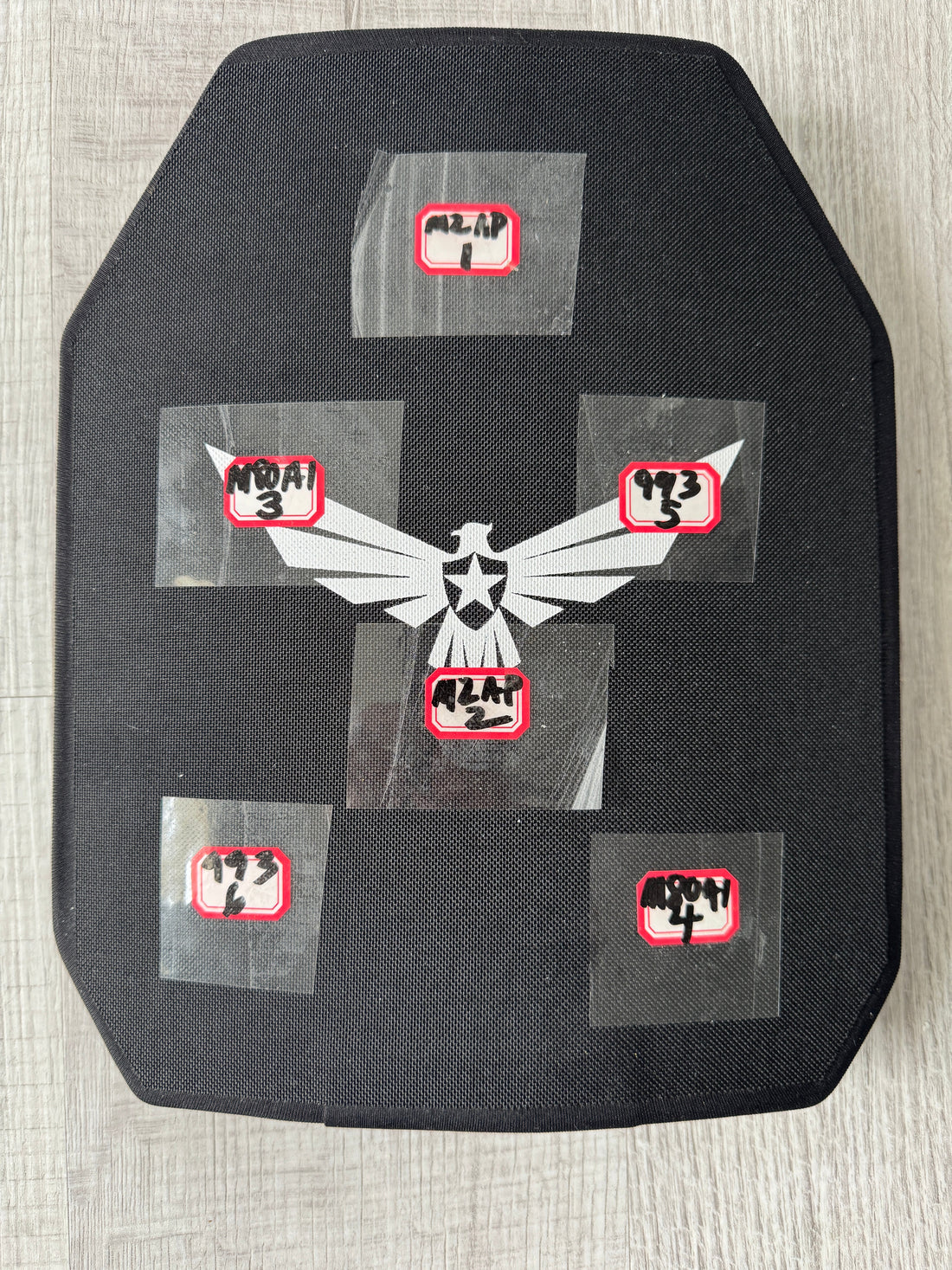

While silicon carbide is more expensive than alumina, its enhanced performance justifies the cost in high-threat environments. For example, SiC-based armor plates are increasingly used in NIJ Level IV body armor and advanced vehicle protection systems designed to counter armor-piercing threats, including tungsten core rounds. Testing has shown that SiC can reliably stop multiple hits from 7.62x51mm AP rounds and even larger caliber tungsten-based projectiles, where alumina might fail.
Just know that silicon carbide is 3-5x more expensive than alumina.
Practical Considerations and Applications
When selecting between alumina and silicon carbide ceramics, the choice depends on the specific threat profile and operational requirements:
  • Alumina: Best suited for applications where cost and weight are balanced against protection from common small arms threats. It is ideal for law enforcement, civilian self-defense, and military applications facing standard ammunition.
  • Silicon Carbide: Preferred for high-threat scenarios involving advanced armor-piercing rounds, such as those with tungsten cores. SiC is increasingly used in elite military units, special operations, and armored vehicles operating in contested environments.
Both ceramics are typically integrated into composite armor systems, paired with backing materials like aramid fibers or UHMWPE to absorb residual energy and prevent spall. The choice of ceramic can significantly impact the system’s overall performance, particularly against specialized threats.
Conclusion
Alumina ballistic ceramic is a highly durable and cost-effective material for ballistic protection, offering excellent resistance to a broad spectrum of threats. Its hardness, lightweight nature, and affordability make it a staple in modern armor systems. However, its susceptibility to tungsten core projectiles highlights a critical limitation, particularly in high-threat military scenarios. Silicon carbide ceramic, with its superior hardness, lower density, and enhanced multi-hit capability, offers a compelling alternative for resisting tungsten-based threats. By understanding the strengths and weaknesses of these materials, manufacturers and end-users can make informed decisions to optimize protection against evolving ballistic challenges. For applications requiring defense against advanced armor-piercing rounds, silicon carbide stands out as the material of choice, ensuring greater survivability in the face of modern threats.
