ARMORFILM™ Adhesive

Professional-grade ballistic adhesive film engineered to enhance ceramic armor plate performance. ARMORFILM™ is GTS's proprietary adhesive system, 100% sourced and manufactured in the USA, designed specifically for bonding ceramic armor components and improving multi-hit capability in body armor systems.

Key Features:

• 100% Made in USA - All source materials and manufacturing processes are domestically sourced and produced
• Proprietary formulation - Developed specifically for ballistic applications and ceramic armor construction
• Enhanced multi-hit performance - Improves crack arresting and damage containment in ceramic armor plates
• Professional-grade bonding - Creates strong, consistent bonds between ceramic tiles and backing materials
• Lower activation temperatures - Protects heat-sensitive UHMWPE molecular chains during bonding
• Low VOC, non-flammable, odorless - Environmentally conscious formulation with no off-gassing
• ISO 9001:2008 quality program - Manufactured under approved quality management system

Technical Specifications:

Advantages of GTS ARMORFILM™:

• Lower activation temperatures - Helps protect Ultra-High-Molecular-Weight Polyethylene molecular chains from heat damage
• Versatile bonding methods - Suitable for oven-based, autoclave bonding, or hydraulic pressing with heated molds
• NIJ drop testing compatible - Permits hard strike face surface protective materials (not just foam) during testing
• Excellent bond strength - Provides strong bonds between many dissimilar materials
• Tested compatibility - Works with many types of ballistic polyethylene
• Clean manufacturing - Made in the USA with low volatile organic compounds and no off-gassing
• Multi-application use - Can be used in hydraulic pressing between sections of different PE materials

Applications & Technical Information:

ARMORFILM™ is used by armor manufacturers, researchers, and advanced DIY armor builders who want to enhance their ceramic armor systems. The adhesive can be used for bonding ceramic tiles in mosaic configurations, attaching ceramic strike faces to backing plates, securing crack arresting layers, and repairing or upgrading existing armor plates.

The heat-activated application process allows for precise control over bonding. The adhesive remains stable until heat is applied through oven, autoclave, or heated mold processes, at which point it activates and creates a strong bond as it cools. This controlled activation ensures consistent results and allows for proper positioning of components before final bonding occurs.

ARMORFILM™ Technical Data Sheet

ARMORFILM™ Safety Data Sheet

Click here to learn more about how ARMORFILM™ can help you make high-performance, safer, more reliable armor.

Ordering Information:

Prices reflected for ARMORFILM™ are SAMPLE prices. Negotiated prices for large quantity orders include discounts beginning at 5 rolls (250' each) and are available incrementally up to 40 rolls. Please request prices for 5+ roll orders.

Sample prices do not include shipping or duties (or any other applicable fees).

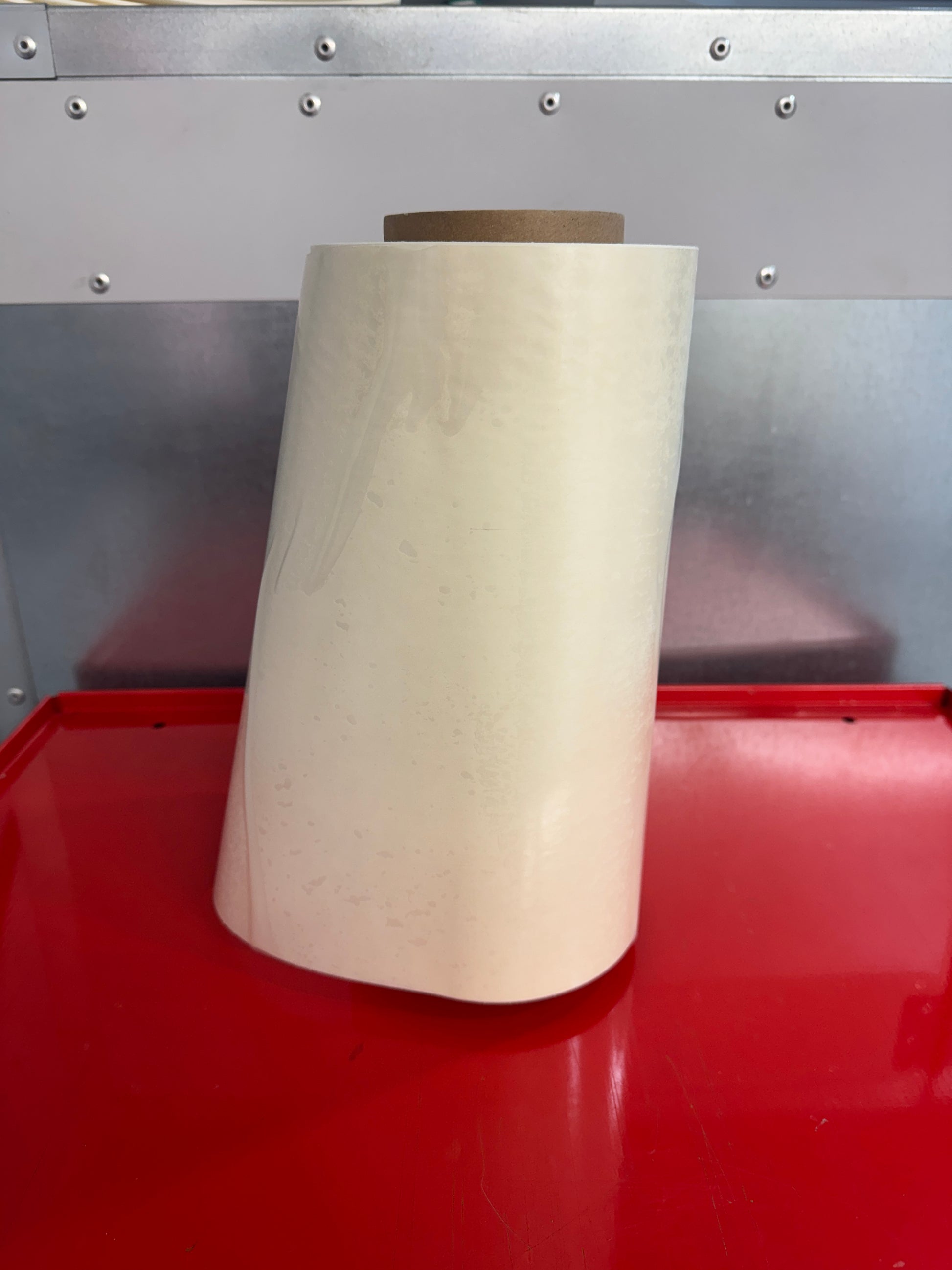

Samples less than 25' can be cut into 12" lengths (squares) and stacked in the shipping box. Samples are delivered in 0.005" (0.13mm) thickness. Other thicknesses are available upon request.

Shipping:

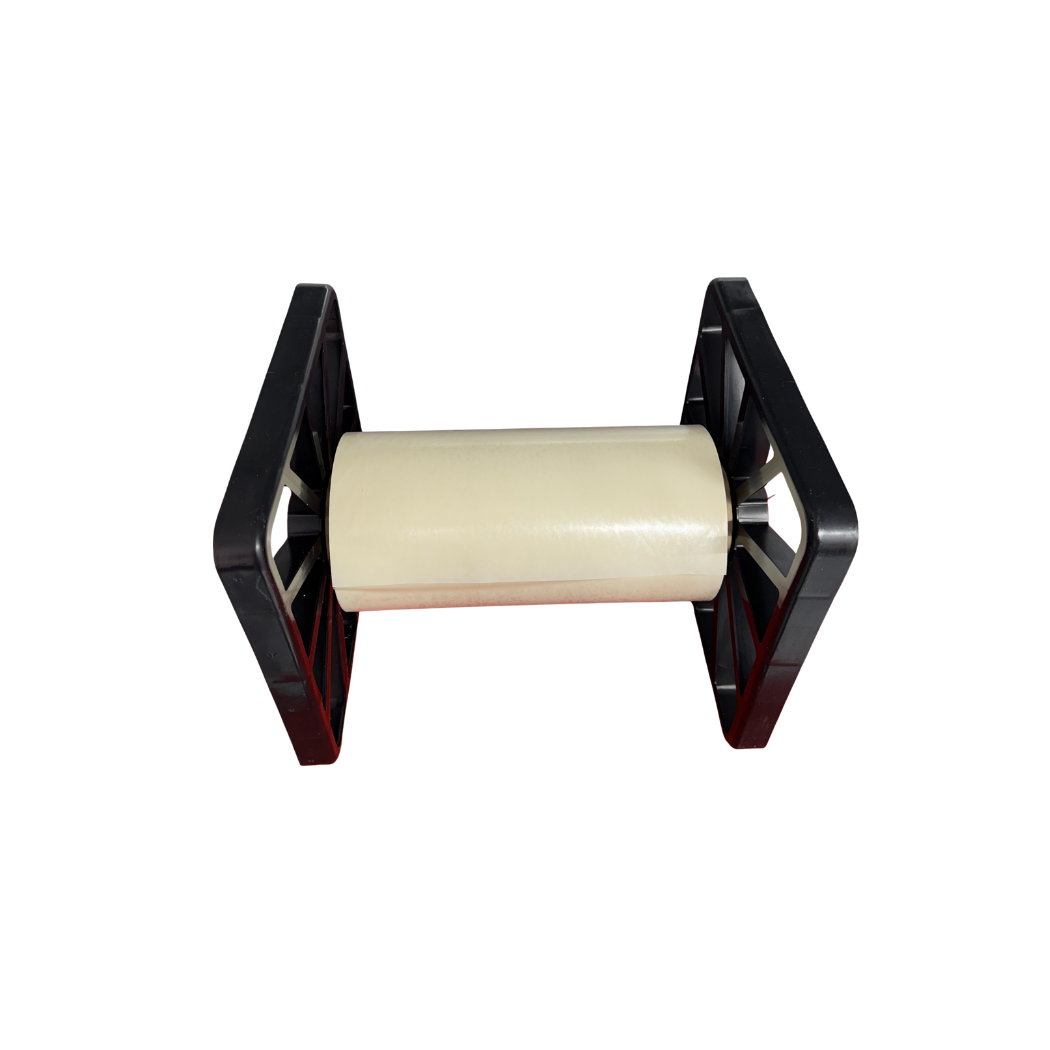

USA domestic shipping is performed through USPS or UPS (our choice). International shipping is provided EXW at our administration office. We can use your UPS or FedEx account number if desired. Please specify international shipping instructions at the time of purchase. All tariffs, VAT, and all other charges related to shipping and importing are the responsibility of the buyer. Full rolls are shipped on plastic carriers and secured with protective materials.

International customers with UPS or FedEx accounts are welcome to use their own shipping account numbers (just contact us before or after purchase).

Basic recommendations regarding ARMORFILM™ ballistic film processing:
