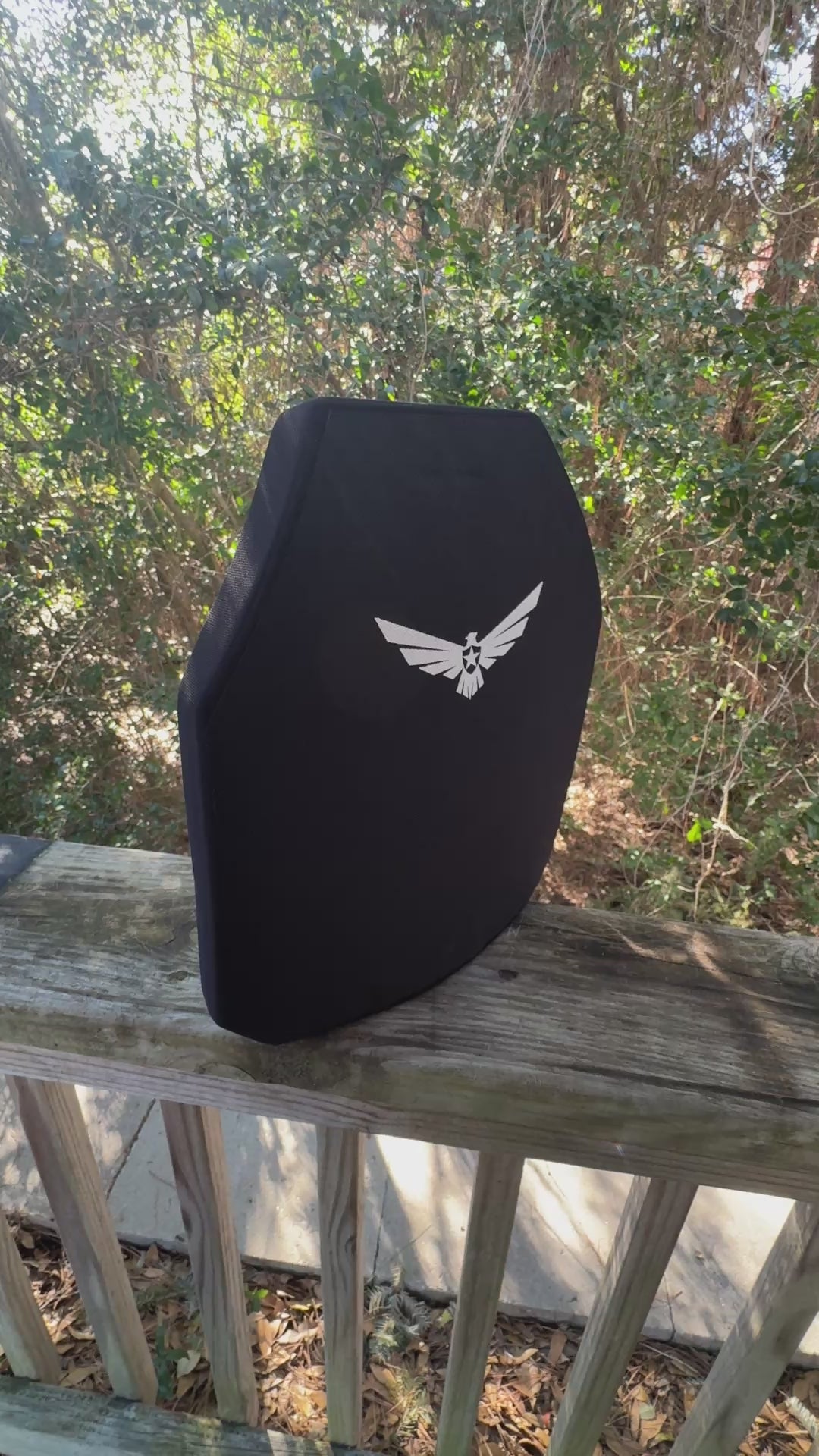

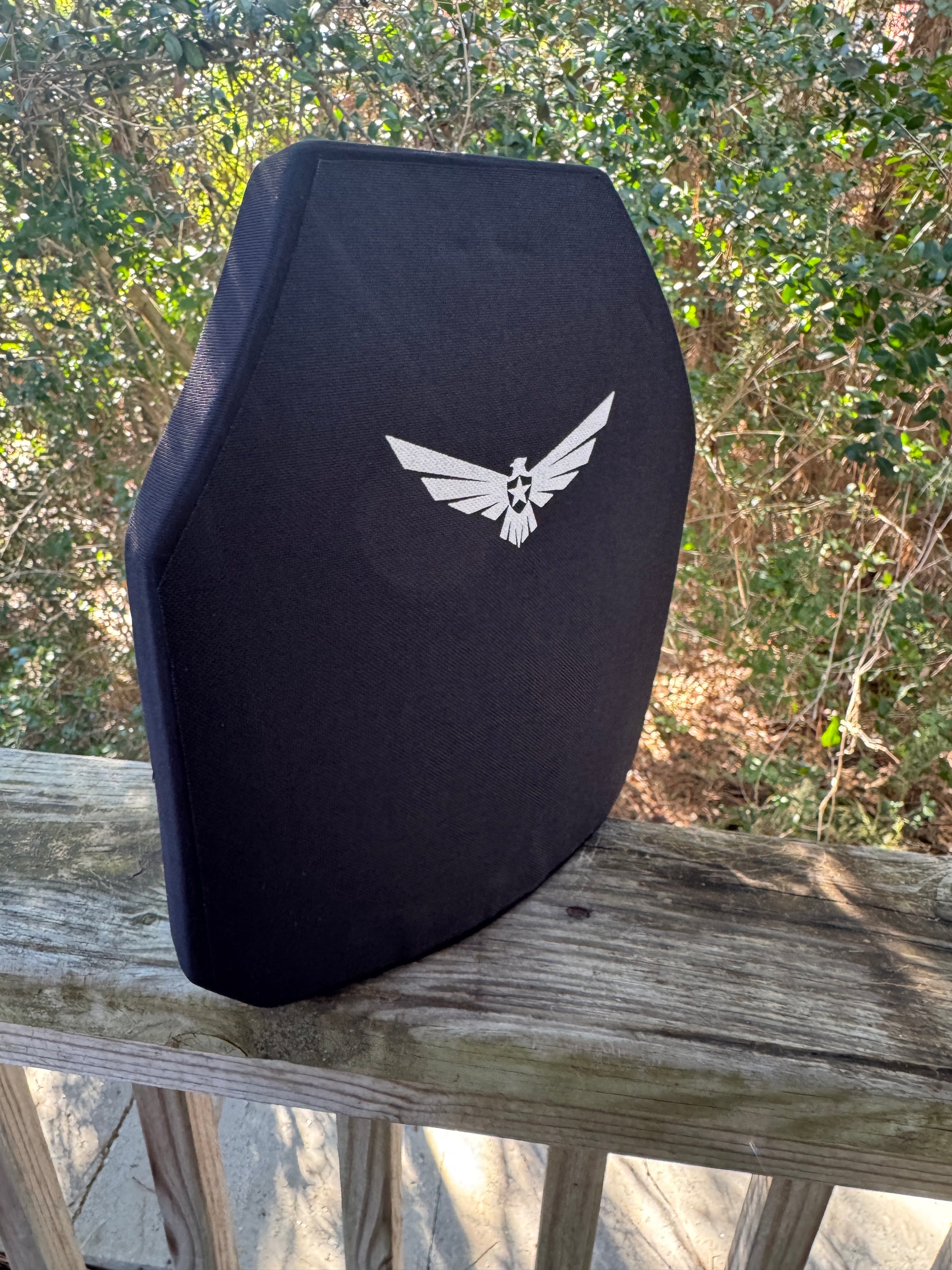

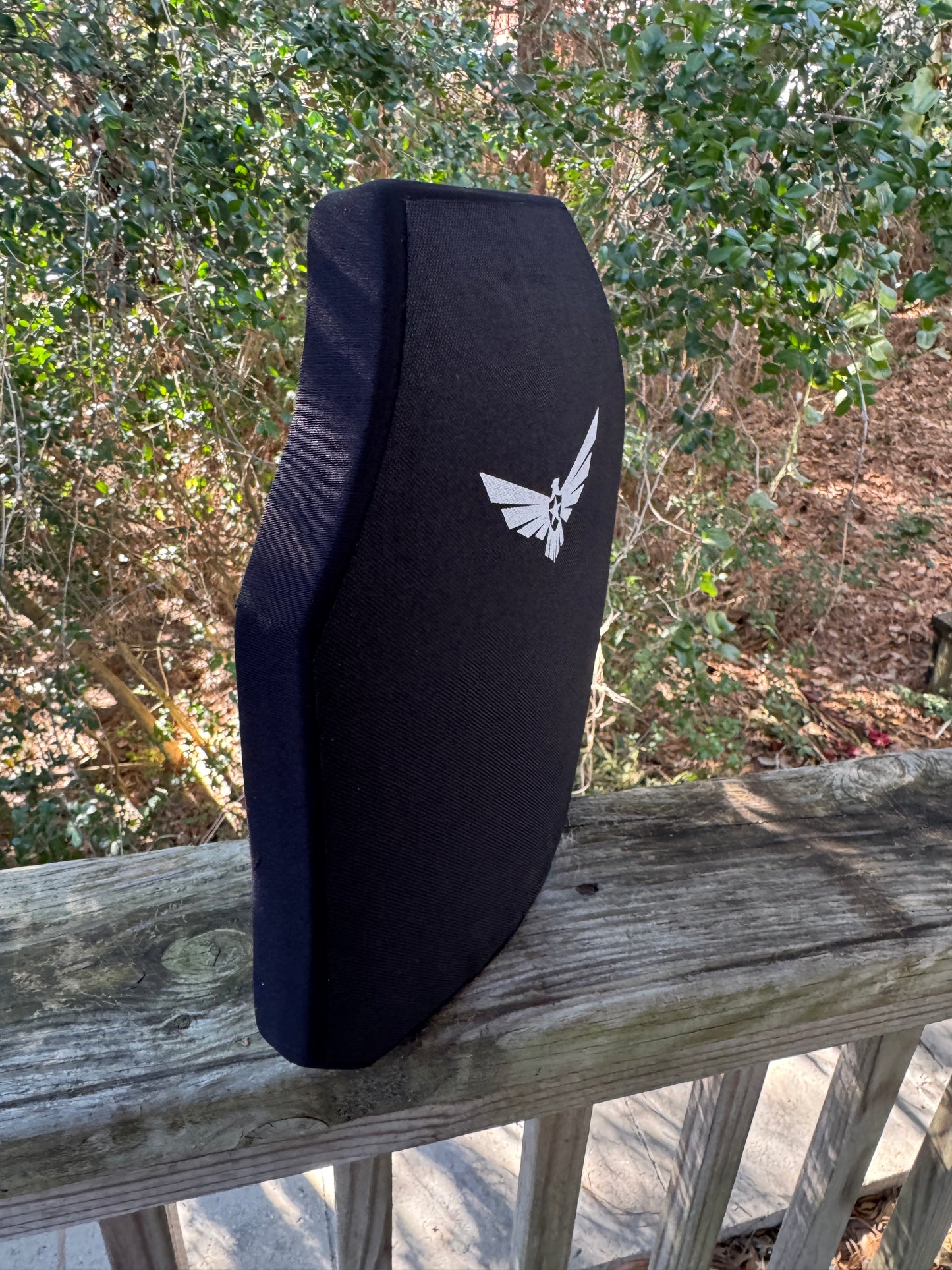

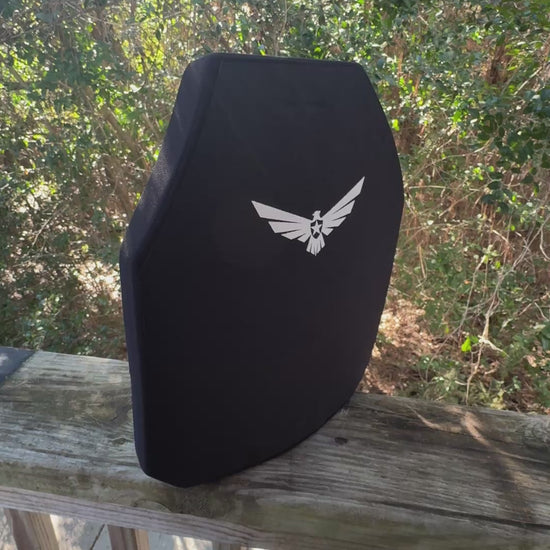

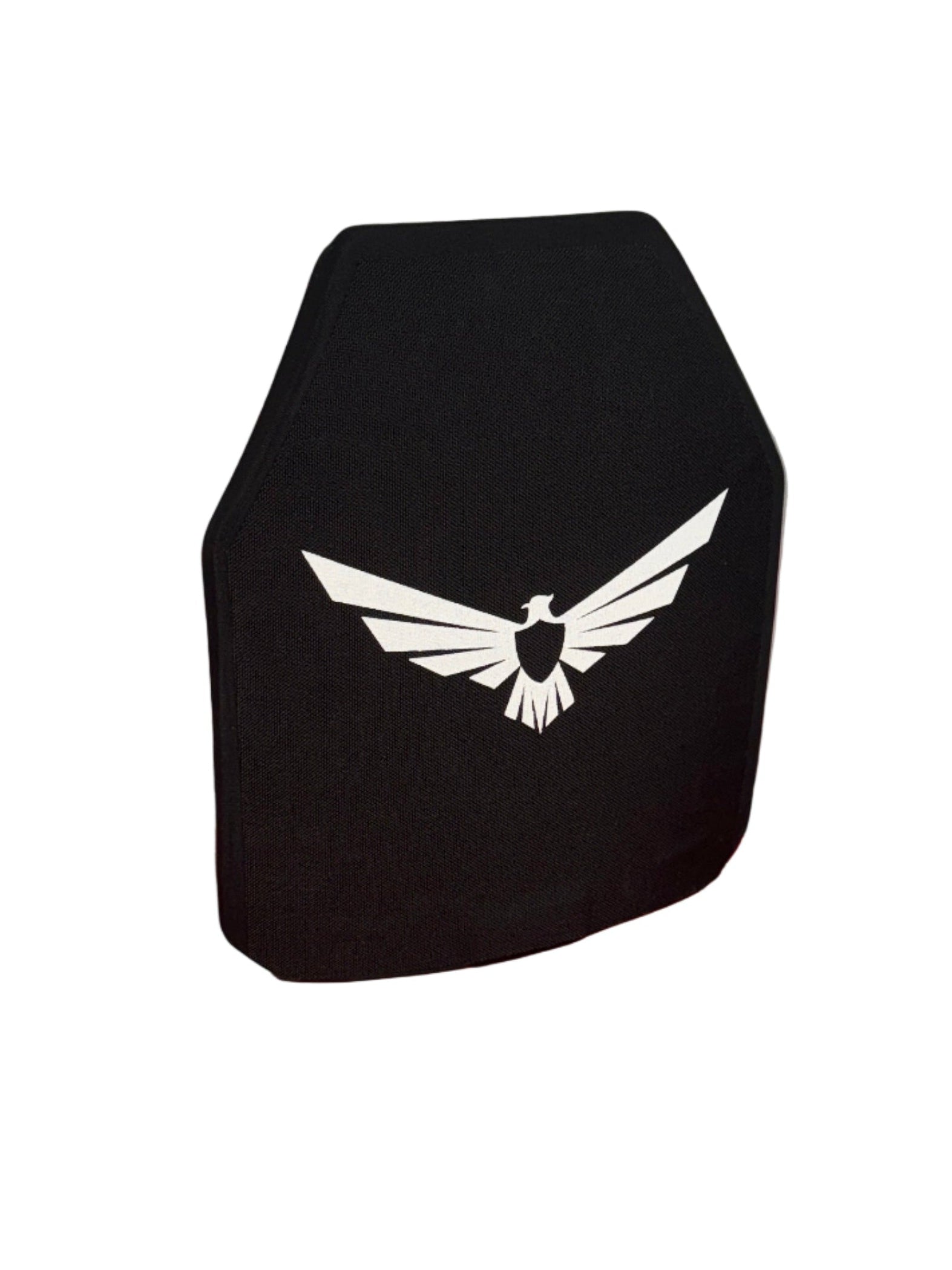

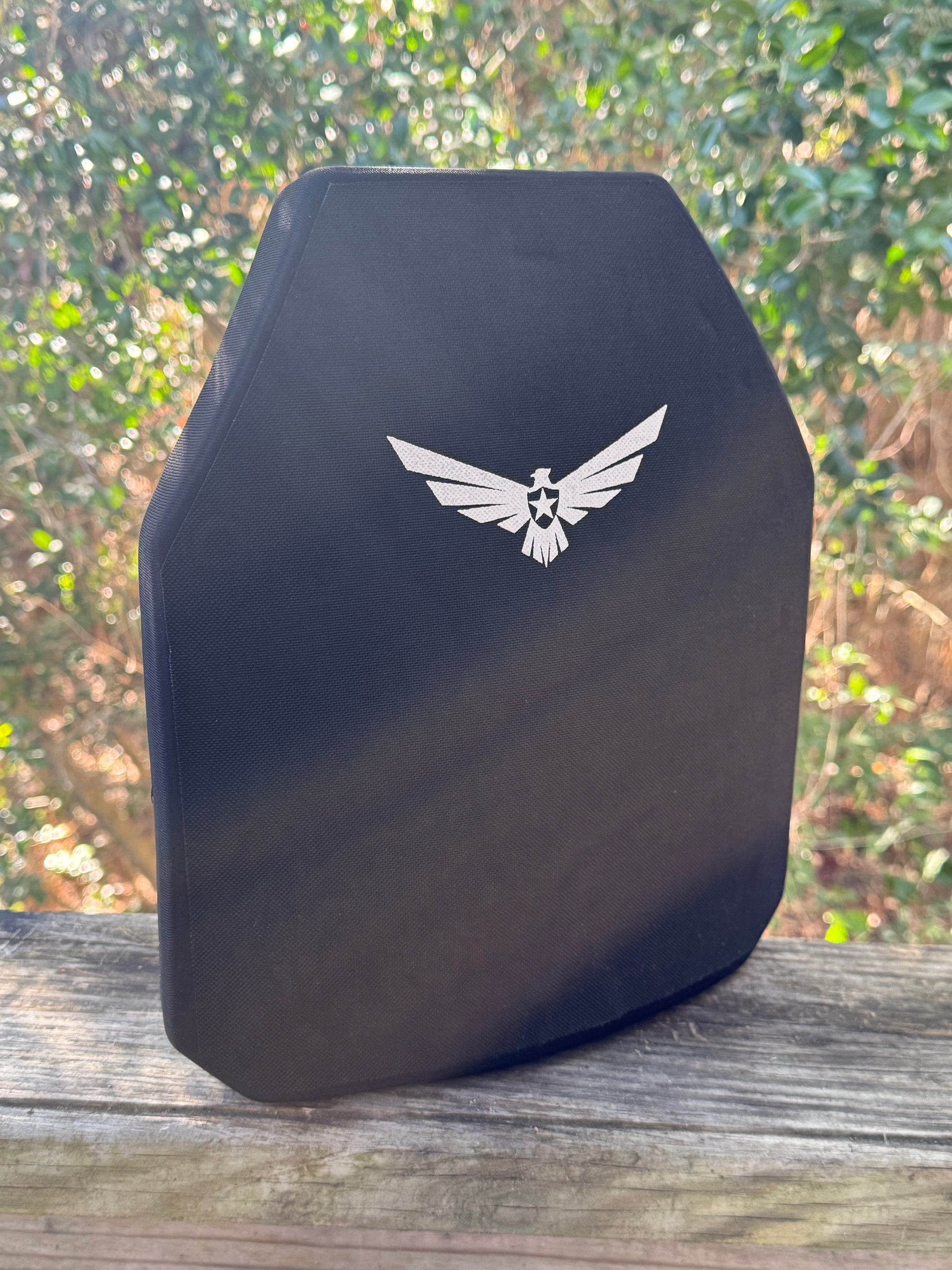

Model 9969 RF3 (Level 4) Multi-Curve Ceramic Armor Plate - Lightweight Tungsten Protection
Model 9969 RF3 (Level 4) Multi-Curve Ceramic Armor Plate - Lightweight Tungsten Protection
Couldn't load pickup availability
Key Features and Benefits
- Silicon Carbide Titanium Diboride (SiC-TiB₂) Strike Face: Superior ceramic material for enhanced projectile erosion
- RF3 Protection: Defeats .30 M2AP and light tungsten core threats

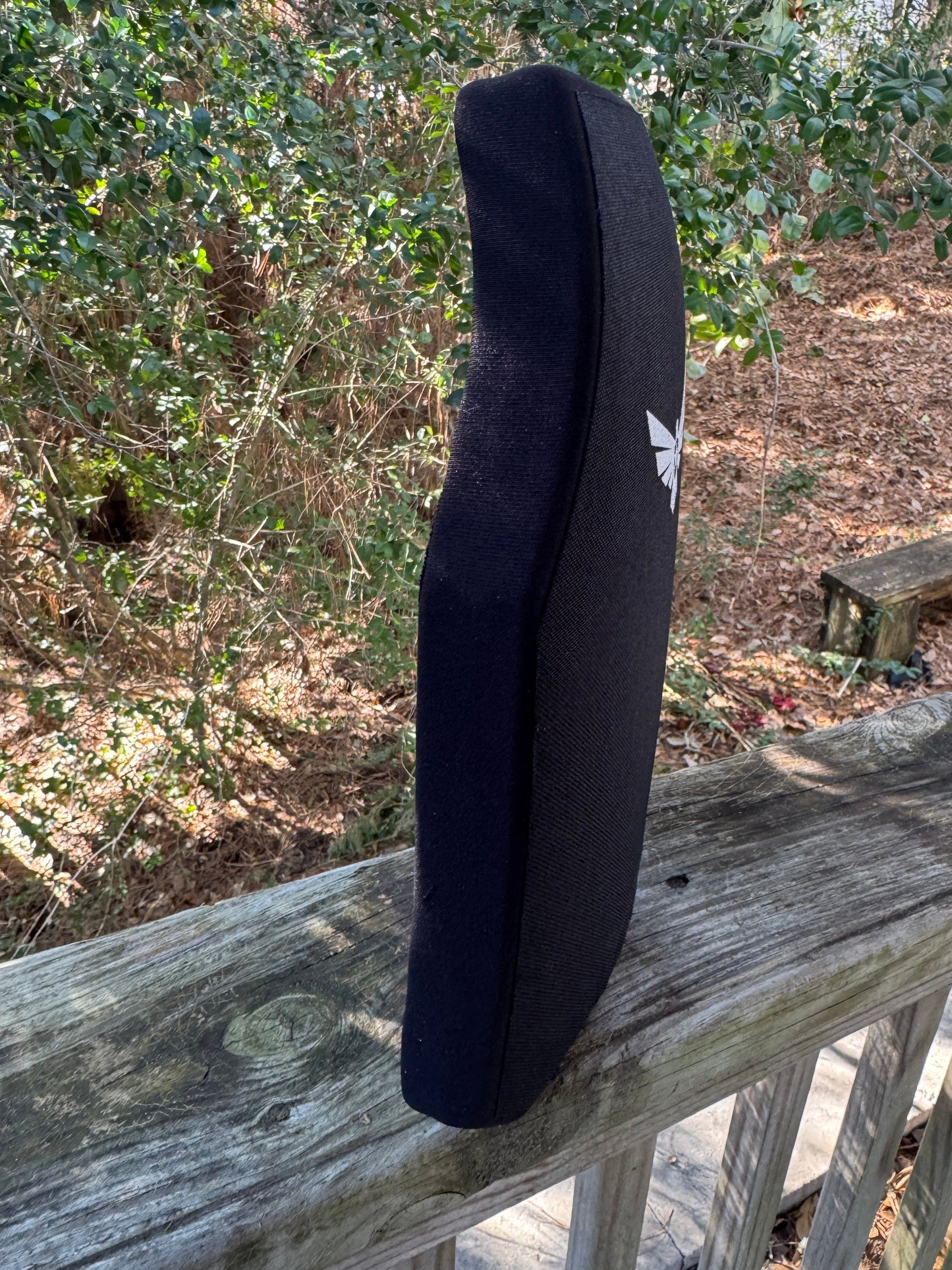

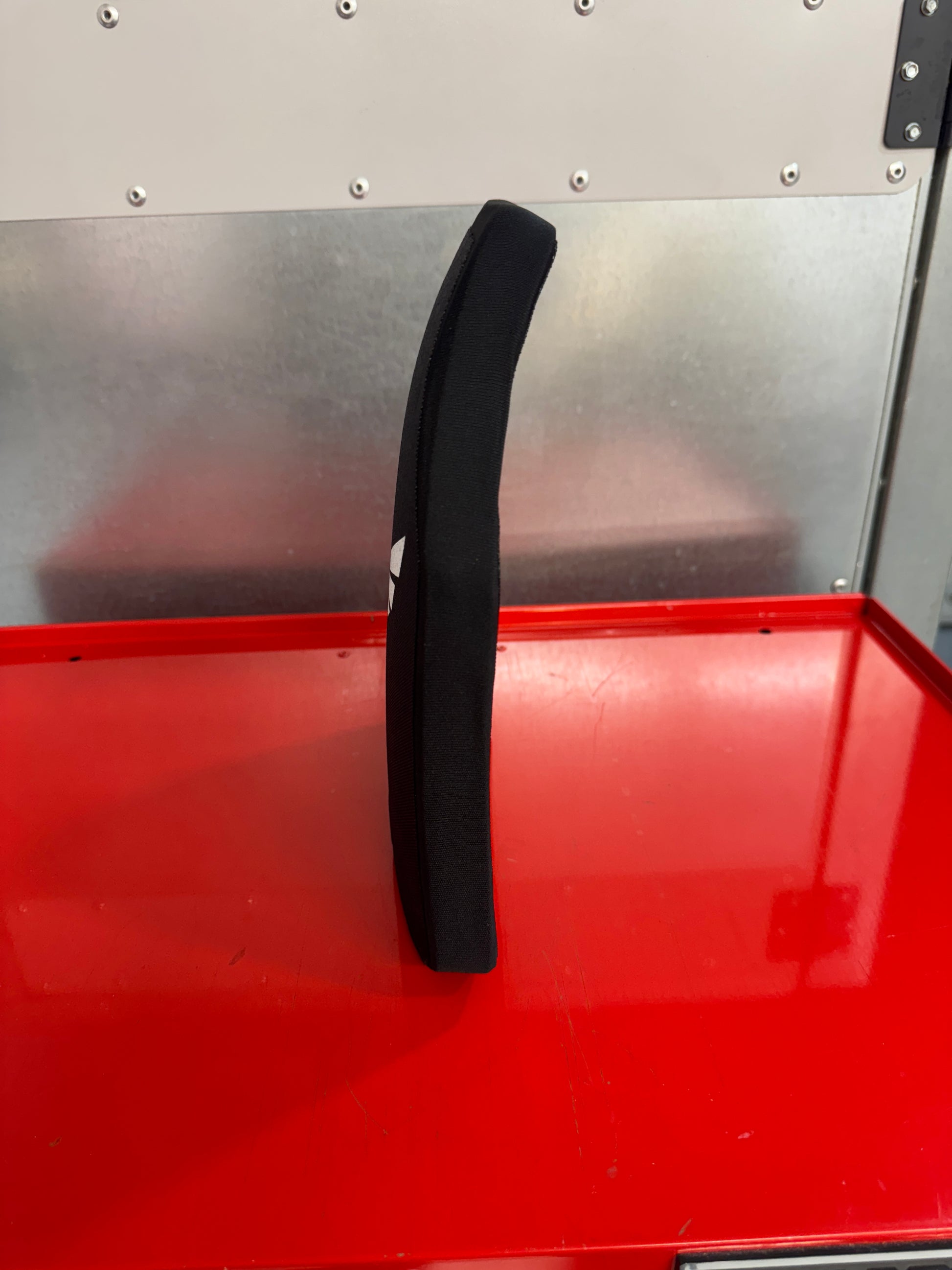

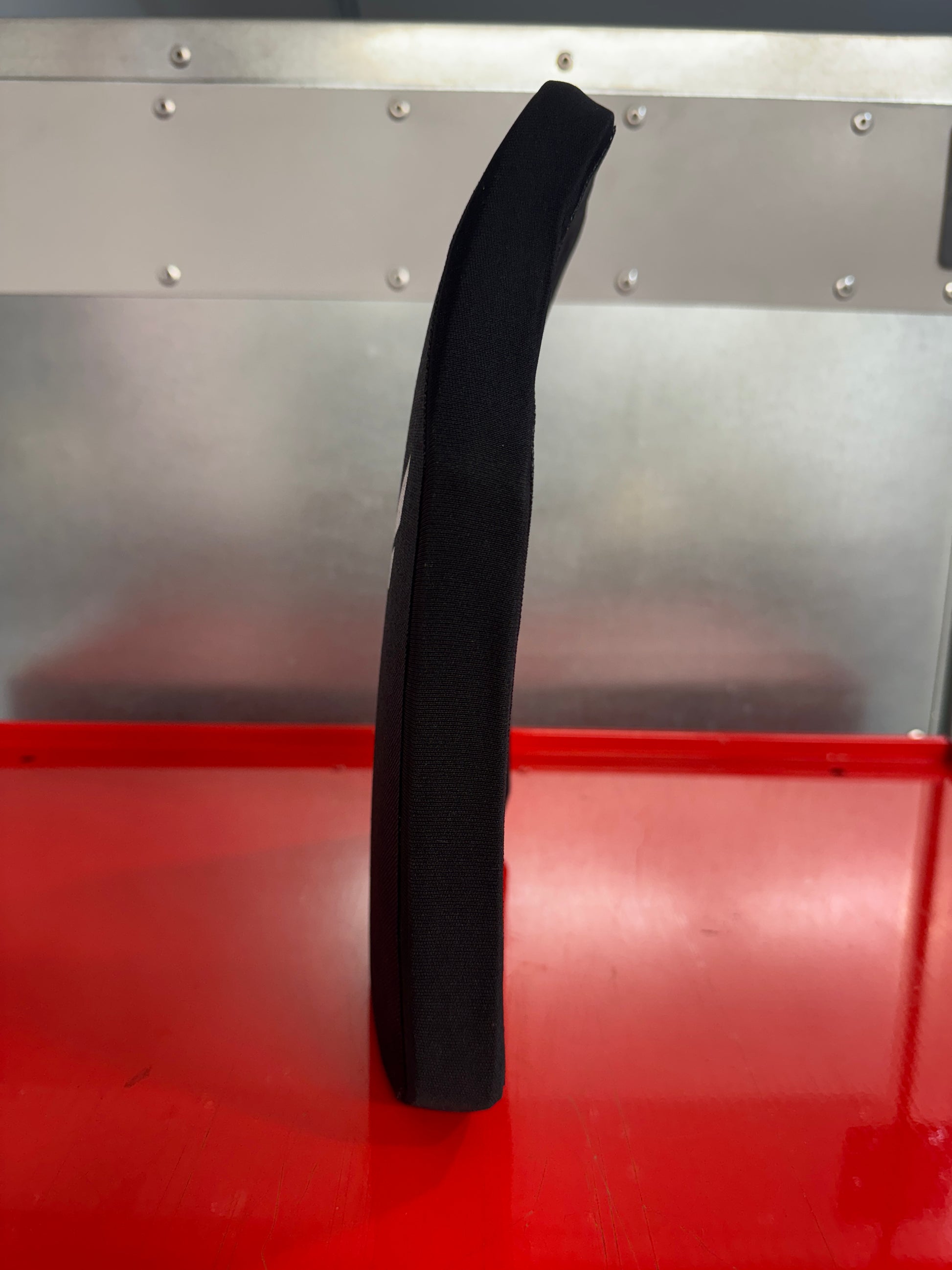

- Multi-Curve Design: Ergonomic fit for all-day comfort and mobility
- Lightweight Construction: Advanced ceramic composite for reduced fatigue
- Built to NIJ 0101.07 Standards: Tested to rigorous NIJ 0101.07 performance standards
- Made in USA: Premium domestic manufacturing and quality control
- Proprietary ARMORFILM: Enhanced adhesive system for reliable performance
- Versatile Compatibility: Works with standard plate carriers and vest systems
Ceramic Material Comparison
Silicon Carbide Titanium Diboride (SiC-TiB₂) is a superior ceramic strike face
| Material | Hardness | Density | Flexural Strength |
|---|---|---|---|
| SiC-TiB₂ | 2600 HV₁ (better at eroding projectiles on impact) | 3.2 gm/cc (lighter) | 385 MPa |
| High Purity Alumina (99.7%) | 1600-1700 HV₁ | 3.9 gm/cc | 380 MPa |
Technical Specifications
| Protection Level: | RF3 (Level 4) |
| Threat Defeat: | .30 M2AP and light tungsten core |
| Curve: | Multi-curve |
| Material: | Silicon Carbide Titanium Diboride (SiC-TiB₂) ceramic composite |
| Weight: | 5.7 lbs (with NIJ drop protection) / 5.6 lbs (without NIJ drop protection) |
| Thickness: | 1.0" (with NIJ drop protection) / 0.8" (without NIJ drop protection) |
| Manufacturing: | Made in USA |
| Testing Standard: | NIJ 0101.07 |
Why Choose Model 9969?
The Model 9969 combines RF3-level ballistic protection with lightweight ergonomic design. Our multi-curve construction ensures comfort during extended wear, while the advanced ceramic composite provides reliable defense against .30 M2AP and light tungsten threats. Every plate is manufactured in the USA using our proprietary ARMORFILM adhesive system and tested to NIJ 0101.07 standards to ensure your safety in critical situations.
